In the automotive coatings industry, every link—from the mirror-like gloss of a new car on the production line, to the fast turnaround of repair paints, and the precise delivery of personalized colors—places stringent demands on additive performance. As a high-performance synthetic aldehyde resin, Kabasph® Aldehyde Resin SH-98S, with its high gloss, high hardness, and excellent yellowing resistance, is delivering a solution that combines performance and cost-effectiveness across four core application scenarios in automotive coatings.
Key Technical Specifications and Positioning

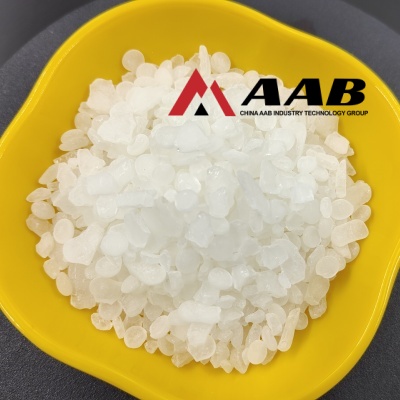

Kabasph® Aldehyde Resin SH-98S is a white to light yellow transparent solid granular resin with the following key technical specifications:
|
Parameter |
Typical Value |
Test Method |
|
Softening Point |
90–105°C |
ISO 4625-1:2004 |
|
Gardner Color (50% solution) |
< 1 |
ISO 4630-1:2004 |
|
Acid Value |
≤ 3 mgKOH/g |
ISO 2114:2004 |
|
Hydroxyl Value |
50–80 mgKOH/g |
DIN 53240-2:1998 |
|
Density |
1.10 ± 0.05 g/cm³ |
ISO 1183-1:2004(E)B |
Notably, Kabasph® Aldehyde Resin SH-98S maintains consistency with BASF's Laropal® A 81 in most specifications while offering a broader hydroxyl value range (50–80 vs. approximately 40), providing greater formulation flexibility. In universal colorant applications, material costs can be reduced by over 30% compared to similar imported products—a significant advantage for paint manufacturers pursuing cost-effectiveness.
Scenario 1: Automotive OEM Coatings – The Hardness and Weathering Cornerstone in Baking Systems
OEM coatings represent the most important protective layer in a vehicle's lifecycle, enduring high-temperature baking on the production line and long-term exposure to UV radiation and climatic erosion. Kabasph® Aldehyde Resin SH-98S contributes to OEM coatings in three core aspects:
Hardness and Scratch Resistance: Participates in the baking crosslinking network to enhance film surface hardness, effectively reducing scratch defects during assembly line handling.
Gloss Enhancement: Its high refractive index imparts a deep mirror-like effect to the paint surface, meeting OEMs' stringent appearance standards for new vehicles.
Weathering Improvement: Excellent light and thermal stability significantly retard UV-induced yellowing and chalking, ensuring long-lasting color durability even after years of outdoor exposure.
For OEM formulators, SH-98S offers stable performance gains within the recommended addition range without requiring major alterations to existing processes.
Scenario 2: Automotive Refinish Paints – A Fast-Drying Solution for Time-Sensitive Quality Repair
Recommended Addition Level: 2%–6%
Refinish paints directly face the pressing reality of "time is money" in repair workshops. SH-98S precisely addresses three major pain points in this scenario:
Reduced Drying Time: Accelerates solvent release and physical drying, particularly effective in low-temperature or high-humidity spot repairs, helping shops improve turnaround efficiency.
Gloss and Hardness Matching: Ensures good visual and physical integration between the repaired area and the original OEM paint in terms of gloss and hardness, avoiding a "patched" appearance.
Weathering Consistency: Since repair areas often have uneven film thickness and can become weak points for aging, the Aldehyde Resin SH-98S's weathering contribution effectively narrows the lifespan gap between the repaired zone and the surrounding paint.
The product is applicable in various refinish systems including nitrocellulose, polyurethane, and amino baking enamels. Its broad compatibility allows performance upgrades without significant reformulation efforts.
Scenario 3: Motorcycle / Bicycle Paints – High Fullness Requirements for Small Surfaces
Recommended Addition Level: 2%–6%
Although motorcycles and bicycles have smaller coated areas than automobiles, users are equally sensitive to color vibrancy, film fullness, and outdoor weathering performance. Our Aldehyde Resin SH-98S plays a direct role here:
Enhanced Fullness: Improves film leveling, giving curved components like frames and fuel tanks a rich, rounded visual effect that significantly elevates product grade.
Weathering Assurance: As two-wheelers are often parked outdoors, SH-98S effectively inhibits chalking and gloss loss, maintaining color freshness over years of use.
Scenario 4: Universal Colorants (Grinding Resins) – A Cost-Reducing, Efficiency-Boosting Dispersion Engine
Recommended Addition Level (liquid formulation): 30%–60%
This is arguably SH-98S's most transformative application. As a grinding resin, it delivers a dual breakthrough:
Dispersion Efficiency and Storage Stability: With excellent pigment wetting properties and low solution viscosity, SH-98S effectively reduces milling time, prevents pigment flocculation and re-agglomeration, and ensures consistent color strength and viscosity even after long-term storage.
Significant Cost Reduction: While delivering performance comparable to imported alternatives, material costs can be lowered by over 30%—a tangible margin improvement for colorant producers.
Conclusion: Performance and Economic Value Across the Entire Value Chain
From OEM coatings on new car production lines, to fast-drying refinish paints at repair terminals, to the delicate finishes on two-wheelers, and even the upfront preparation of colorants—Kabasph® Aldehyde Resin SH-98S provides differentiated solutions for the entire automotive coatings value chain from a single core chemistry platform. Its technical equivalence to Laropal® A 81, combined with significant cost advantages, makes it an ideal choice for automotive coating manufacturers pursuing both quality excellence and cost optimization.
